Các loại máy bay chở hàng trong vận tải hàng không

Ngành công nghiệp hàng không không chỉ đảm bảo việc di chuyển con người trên toàn cầu một cách nhanh chóng và an toàn, mà còn đóng một vai trò không kém phần quan trọng trong việc vận chuyển hàng hóa. Để thực hiện nhiệm vụ này, các máy bay chở hàng chuyên biệt đã ra đời. Bài viết này sẽ giới thiệu đến bạn các loại máy bay chở hàng phổ biến trong ngành vận tải hàng không và cách chúng đóng góp vào hệ thống vận tải hàng hóa toàn cầu.

Boeing 737-400

Các kiểu máy bay vận chuyển hàng hóa xuất nhập khẩu

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	4.67	184	0.76×1,65	30×65	2.62	103	2.77	109
B	5.03	198	0,86x1x83	34×72	2.62	103	2.77	109
C	28.93	1,139	0,76×1,65	30×65	2.62	103	2.67	105
D	28.93	1,139	0,76×1,83	30×72	2.62	103	2.67	105
E	8.53	336	1,22×0,89	48×35	1.27	50	1.40	55
F	24.99	984	1,22×0,84	48×33	1.37	54	1.73	54
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					24.0m3
Maximum weight					2,897kg

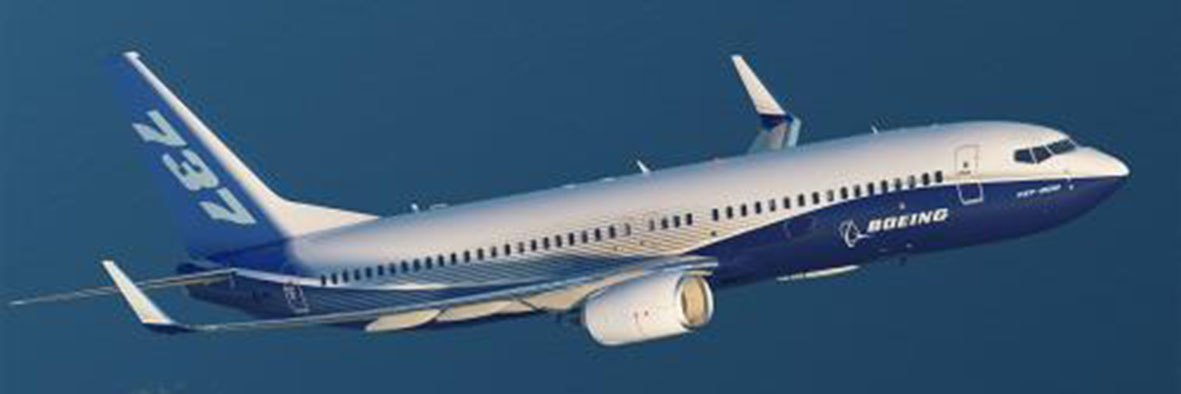

Boeing 737-800

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	4.76	1.84	0.76×1,65	30×65	2.62	103	2.77	109
B	5.03	1.98	0,86x1x83	34×72	2.62	103	2.77	109
C	28.93	1,139	0,76×1,65	30×65	2.62	103	2.67	105
D	2893	1,139	0,76×1,83	30×72	2.62	103	2.67	105
E	8.53	336	1,22×0,89	48×35	1.27	50	1.40	55
F	24.99	984	1,22×0,84	48×33	1.37	54	1.73	54
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					28.0m3
Maximum weight					2,600kg

Boeing 737-300/500

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	4.76	1.84	0.76×1,65	30×65	2.62	103	2.77	109
B	5.03	1.98	0,86x1x83	34×72	2.62	103	2.77	109
C	28.93	1,139	0,76×1,65	30×65	2.62	103	2.67	105
D	2893	1,139	0,76×1,83	30×72	2.62	103	2.67	105
E	8.53	336	1,22×0,89	48×35	1.27	50	1.40	55
F	24.99	984	1,22×0,84	48×33	1.37	54	1.73	54
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					28.0m3
Maximum weight					2,600kg

Boeing 757-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	4.67	184	0.76×1,65	30×65	2.62	103	2.77	109
B	5.03	198	0,86x1x83	34×72	2.62	103	2.77	109
C	26.04	1,025	0,76×1,65	30×65	2.62	103	2.67	105
D	26.04	1,025	0,76×1,83	30×72	2.62	103	2.67	105
E	8.53	336	1,30×1,22	48×35	1.27	50	1.40	55
F	22.10	870	1,22×1,22	48×48	1.37	54	1.73	54
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					21.0m3
Maximum weight					2,250kg

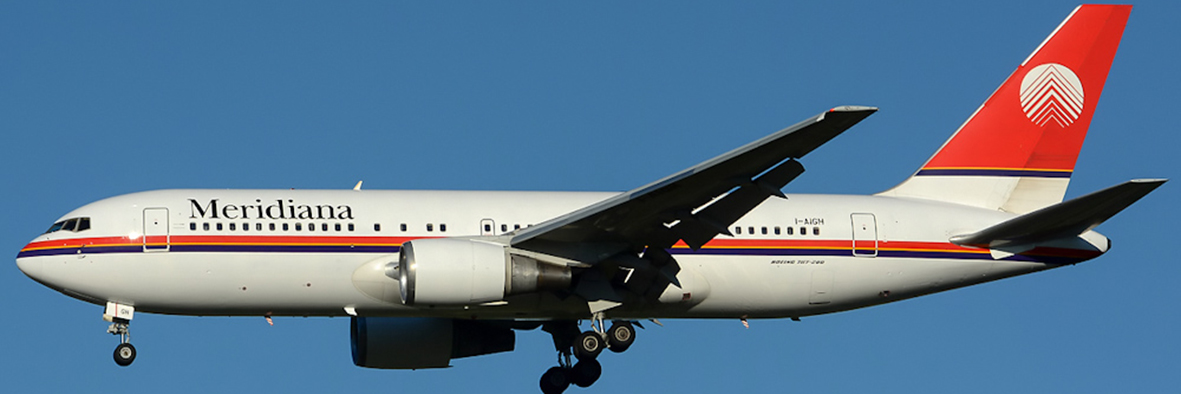

Boeing 767-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	4.78	188	0.76×1,65	30×65	3.79	149	4.01	1.58
B	5.05	199	0,84x1x83	33×72	3.79	149	4.01	1.58
C	13.99	551	0,84×1,65	33×72	3.84	151	4.01	158
D	38.23	1,505	0,76×1,83	30×72	3.89	153	4.14	163
E	10.95	431	1,40×1,07	55×42	2.46	97	2.67	105
F	31.78	1,251	1,40×1,12	55×44	2.36	93	2.51	99
G	35.74	1,407	1,22×0,81	48×32	2.59	102	2.77	109
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					35.0m3
Maximum weight					5,000kg

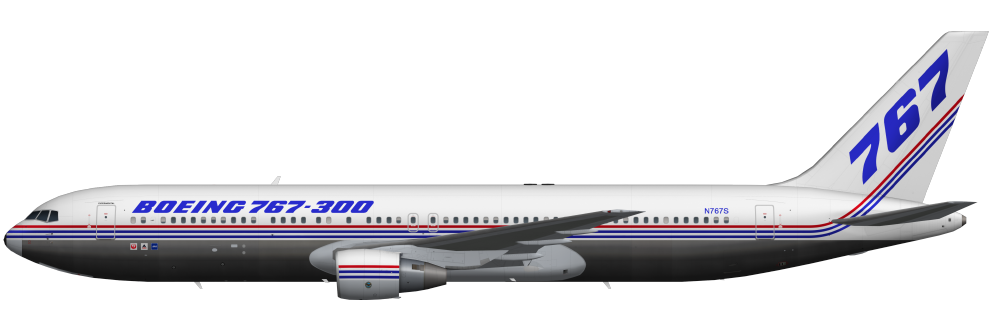

Boeing 767-300/300ER

ULD Configuration					7LD8/2LD7
Volume available for freight (based on full passenger loads)					46.0m3
Maximum weight					10,000kg

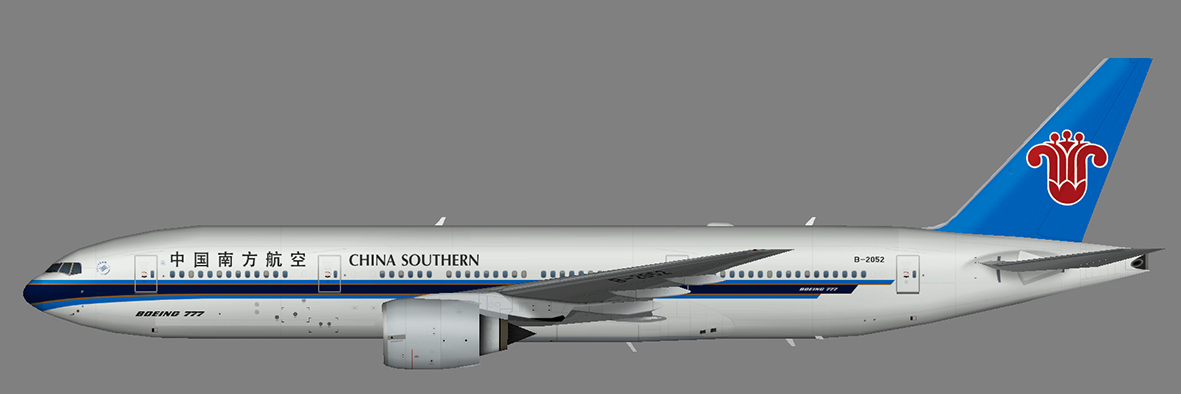

Boeing 777-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	5.72	255	1,07×1,83	42×72	4.14	163	4.50	177
B	5.72	255	1,07×1,88	42×74	4.14	163	4.50	177
C	42.55	1,675	1,07×1,83	42×72	3.99	157	4.39	173
D	42.55	1,675	1,07×1,88	42×72	3.99	157	4.39	173
E	11.30	445	3,40×1,70	134×67	2.29	90	2.57	101
F	12.32	485	1,78×1,70	70×67	2.29	90	2.57	101
G	37.29	1,486	1,78×1,70	70×67	2.18	86	2.52	99
H	40.62	1,599	0,97×1,89	38×43	2.21	87	2.59	102
ULD Configuration					Bulk hold
Volume available for freight (based on full passenger loads)					63.0m3
Maximum weight					16,500kg

Boeing 747-400

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	6.74	266	1,07×1,88	42×74	4.71	185	5.00	197
B	17.07	672	1,07×1,88	42×74	4.88	192	5.07	200
C	36.32	1,430	1,07×1,88	42×74	5.16	203	5.30	209
D	49.53	1,950	1,07x1x88	42×74	5.28	206	5.53	218
E	11.80	465	2,69x1x70	106×67	2.81	111	3.05	120
F (s)	41.25	1,624	1,78×1,70	70×67	3.23	127	3.40	134
*F(I)	41.77	1,645	1,70×2,69	67×106	3.23	127	3.41	134
G	46.32	1,824	0,91×1,14	36×45	3.39	133	3.61	142
ULD Configuration					4AKE +6PAG+Buld holds
Volume available for freight (based on full passenger loads)					80m3
Maximum weight					14x000kg

Boeing 747-300

Equipment available for freight (based on full passenger loads)					6LD7+Bulkhold
Volume available for freight (based on full passenger loads)					70.0m3
Maximum weight					20,000kg

Boeing 747-400 Freighter

Equipment available for freight (based on full passenger loads)					30M1/9LD7
Volume available for freight (based on full passenger loads)					764.5m3
Maximum weight					115,000kg (400series)

Airbus 321-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	5.02	198	0.81×1.85	32×73	3.43	135	3.45	137
B	8.82	1,167	0.81×1.85	32×73	3.46	136	3.54	139
C	36.57	1,440	0.81×1.85	73×32	3.54	139	3.73	147
D	8.16	321	1.82×1.23	71.5×48	2.03	80	2.09	82
E	29.72	1,170	1.82×1.23	71.5×48	2.11	83	2.26	89
F	33.22	1,370	0.86×0.94	34×37	2.34	92	2.51	99
ULD Configuration					4PAG + Bulk hold
Volume available for freight (based on full passenger loads)					30.0m3
Maximum weight					5,000kg

Airbus 320-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	5.02	198	1,85×0,81	73×32	3.42	135	3.47	137
B	29.04	1,167	1x85x0,81	73×32	3.55	140	3.73	147
C	8.16	321	1,23×1,82	48.3×71.5	2.03	80	2.09	82
D	22.69	893	1,23×1,82	48.3×71.5	2.11	83	2.25	88.50
E	26.29	1,035	0,86×0,94	34×37	1.27	92.5	2.51	99
ULD Configuration					7AKH + Bulk hold
Volume available for freight (based on full passenger loads)					30.0m3
Maximum weight					5,000kg

Airbus 330-200

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	5.85	230	1.07×1.93	42×76	4.40	175	4.58	180
B	17.74	698	1.07×1.93	42×76	4.69	184	4.86	191
C	46.68	1,838	1.07×1.93	42×76	5.47	215	5.70	224
D	9.53	375	1.07×2.70	70×106	2.58	101	2.73	107
E	40.09	1,579	2.73×1.68	107.5×66	3.22	127	3.45	136
F	43.07	1,696	0.95×0.95	37.4×37.4	3.36	132	3.58	141
ULD Configuration					4LD7+4LD3+Bulk hold
Volume available for freight (based on full passenger loads)					66.8m3
Maximum weight					14,100kg

Airbus 340-300

Door	Distance from A/C Nose		Door Size		Sill Height
Number	Metres	Inches	Metres	Inches	Metres	Inches	Metres	Inches
A	5.85	230	1.93×1.07	76×42	4.41	175	4.59	180
B	17.74	698	1.93×1.07	76×42	4.67	184	4.84	190
C	50.95	2,005	1.93×1.07	76×42	5.47	215	5.73	226
D	9.53	375	2.70×1.70	106×70	2.58	101	2.73	107
E	44.36	1,746	2.73×1.68	106×70	3.23	127	3.44	135
F	47.34	1,864	0.95×0.95	37.4×37.4	3.35	132	3.58	141
ULD Configuration					7PAG + Bulk hold
Volume available for freight (based on full passenger loads)					70.0m3
Maximum weight					16,000kg
